Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu250A
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70kA
Overload release current setting200 - 250A
Adjustment range short-term delayed short-circuit release0 - 0A
Adjustment range undelayed short-circuit release6 - 10A
Device constructionBuilt-in device plug-in technique
Integrated earth fault protectionNo
Suitable for DIN rail (top hat rail) mountingNo
Type of electrical connection of main circuitScrew connection
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
With switched-off indicatorNo
Number of auxiliary contacts as normally open contact0
Position of connection for main current circuitBack side
With integrated under voltage releaseNo
Number of poles4
Motor drive optionalYes
Type of control elementRocker lever
Degree of protection (IP)IP20
Complete device with protection unitYes
Motor drive integratedNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

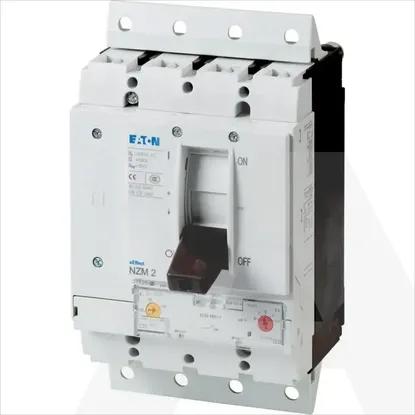

NZMS2-4-A250/160-SVE | Circuit-breaker, 4p, Icu=70kA(415V), In=250A,N=60In, circuit.prot, thermomag,
