Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu63A
Rated voltage690 - 690V
Overload release current setting50 - 63A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70kA
Adjustment range short-term delayed short-circuit release0 - 0A
Device constructionBuilt-in device plug-in technique
Adjustment range undelayed short-circuit release378 - 630A
Integrated earth fault protectionNo
Type of electrical connection of main circuitScrew connection
DIN rail (top hat rail) mounting optionalNo
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
With integrated under voltage releaseNo
With switched-off indicatorNo
Number of poles3
Position of connection for main current circuitBack side
Type of control elementRocker lever
Complete device with protection unitYes
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

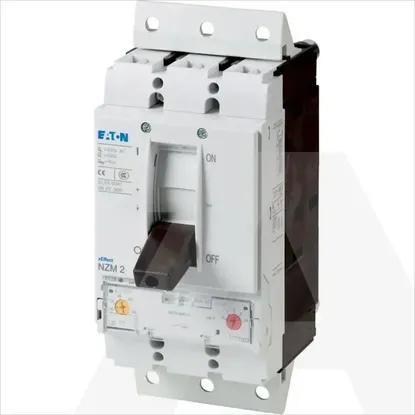

NZMS2-A63-SVE | Circuit-breaker, 3p, Icu=70kA(415V), In=63A, circuit.prot, thermomag, plug-in
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Rated permanent current Iu
63A
Rated voltage
690 .. 690V
Overload release current setting
50 .. 63A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
70kA
Adjustment range short-term delayed short-circuit release
0 .. 0A
Device construction
Built-in device plug-in technique
Adjustment range undelayed short-circuit release
378 .. 630A
Integrated earth fault protection
Type of electrical connection of main circuit
Screw connection
DIN rail (top hat rail) mounting optional
Suitable for DIN rail (top hat rail) mounting
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
With integrated under voltage release
With switched-off indicator
Number of poles
3
Position of connection for main current circuit
Back side
Type of control element
Rocker lever
Complete device with protection unit
Motor drive integrated
Motor drive optional
Degree of protection (IP)
IP20
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
