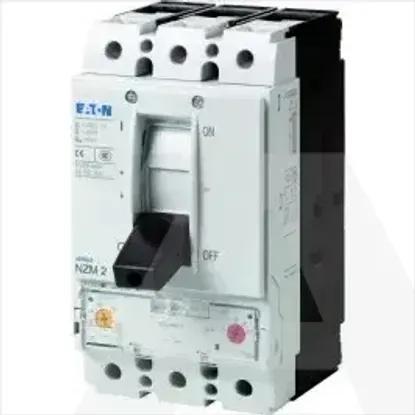

NZMS2-A80 | Circuit-breaker, 3p, Icu=70kA(415V), In=80A, circuit.prot, thermomag, fixed.mount,
Code: 2036889
ManufacturerEaton
Catalog number109961
TypePower circuit-breaker for trafo/generator/installation protection
EAN code4015081095278
Details
- •screw.terminal
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Overload release current setting63 - 80A
Adjustment range short-term delayed short-circuit release0 - 0A
Integrated earth fault protectionNo
Adjustment range undelayed short-circuit release480 - 800A
Device constructionBuilt-in device fixed built-in technique
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalYes
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
With switched-off indicatorNo
With integrated under voltage releaseNo
Type of control elementRocker lever
Position of connection for main current circuitFront side
Motor drive integratedNo
Complete device with protection unitYes
Motor drive optionalYes
Degree of protection (IP)IP20
Rated permanent current Iu80A
Number of poles3
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70kA
