Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu80A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70kA
Rated voltage690 - 690V
Overload release current setting63 - 80A
Adjustment range short-term delayed short-circuit release0 - 0A
Adjustment range undelayed short-circuit release480 - 800A
Device constructionBuilt-in device plug-in technique
Type of electrical connection of main circuitScrew connection
Integrated earth fault protectionNo
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
With switched-off indicatorNo
Number of poles3
With integrated under voltage releaseNo
Position of connection for main current circuitBack side
Type of control elementRocker lever
Motor drive integratedNo
Complete device with protection unitYes
Motor drive optionalYes
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

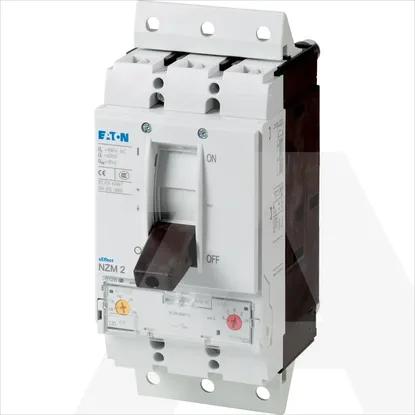

NZMS2-A80-SVE | Circuit-breaker, 3p, Icu=70kA(415V), In=80A, circuit.prot, thermomag, plug-in
