Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Overload release current setting160 - 200A
Switch off techniqueThermomagnetic
Rated operating voltage690 - 690V
Rated operation power at AC-3, 230 V55kW
With thermal protectionNo
Phase failure sensitiveYes
With integrated under voltage releaseNo
Rated permanent current Iu200A
Rated operation power at AC-3, 400 V110kW
With integrated auxiliary switchNo
Rated short-circuit breaking capacity lcu at 400 V, AC150kA
Width105mm
Adjustment range undelayed short-circuit release1600 - 2800A
Type of electrical connection of main circuitScrew connection
Device constructionBuilt-in device plug-in technique
Number of poles3
Degree of protection (IP)IP20
Depth180mm
Type of control elementRocker lever
Height245mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

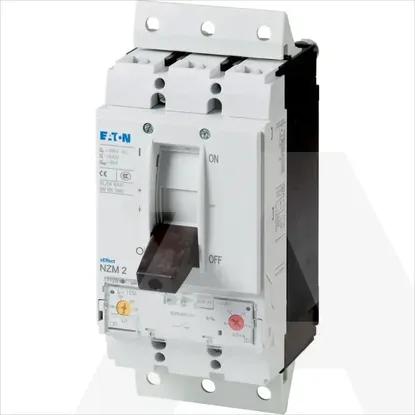

NZMS2-M200-SVE | Circuit-breaker, 3p, Icu=70kA(415V), In=200A, motor protect, thermomag, plug-in
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Motor protection circuit-breaker
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Overload release current setting
160 .. 200A
Switch off technique
Thermomagnetic
Rated operating voltage
690 .. 690V
Rated operation power at AC-3, 230 V
55kW
With thermal protection
Phase failure sensitive
With integrated under voltage release
Rated permanent current Iu
200A
Rated operation power at AC-3, 400 V
110kW
With integrated auxiliary switch
Rated short-circuit breaking capacity lcu at 400 V, AC
150kA
Width
105mm
Adjustment range undelayed short-circuit release
1600 .. 2800A
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device plug-in technique
Number of poles
3
Degree of protection (IP)
IP20
Depth
180mm
Type of control element
Rocker lever
Height
245mm
