Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu125A
Overload release current setting62.5 - 125A
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70kA
Adjustment range short-term delayed short-circuit release0 - 0A
Adjustment range undelayed short-circuit release8 - 14A
Integrated earth fault protectionNo
Device constructionBuilt-in device plug-in technique
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
With switched-off indicatorNo
Number of poles3
Position of connection for main current circuitBack side
Type of control elementRocker lever
Complete device with protection unitYes
Degree of protection (IP)IP20
Motor drive optionalYes
With integrated under voltage releaseNo
Motor drive integratedNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

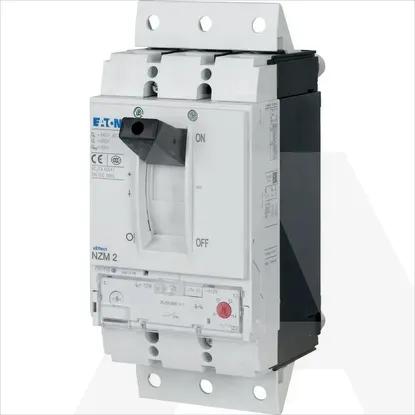

NZMS2-S125-SVE | Circuit-breaker, 3p, Icu=70kA(415V), In=125A, no thermal, mag only, plug-in
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Rated permanent current Iu
125A
Overload release current setting
62.5 .. 125A
Rated voltage
690 .. 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
70kA
Adjustment range short-term delayed short-circuit release
0 .. 0A
Adjustment range undelayed short-circuit release
8 .. 14A
Integrated earth fault protection
Device construction
Built-in device plug-in technique
Type of electrical connection of main circuit
Screw connection
Suitable for DIN rail (top hat rail) mounting
DIN rail (top hat rail) mounting optional
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Number of auxiliary contacts as normally open contact
0
With switched-off indicator
Number of poles
3
Position of connection for main current circuit
Back side
Type of control element
Rocker lever
Complete device with protection unit
Degree of protection (IP)
IP20
Motor drive optional
With integrated under voltage release
Motor drive integrated
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
