Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Adjustment range short-term delayed short-circuit release0 - 0A
Type of electrical connection of main circuitScrew connection
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Overload release current setting100 - 200A
Adjustment range undelayed short-circuit release8 - 12.5A
Number of auxiliary contacts as normally closed contact0
DIN rail (top hat rail) mounting optionalYes
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Type of control elementRocker lever
Position of connection for main current circuitFront side
With integrated under voltage releaseNo
Number of auxiliary contacts as normally open contact0
Complete device with protection unitYes
With switched-off indicatorNo
Degree of protection (IP)IP20
Motor drive optionalYes
Rated permanent current Iu200A
Number of poles3
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

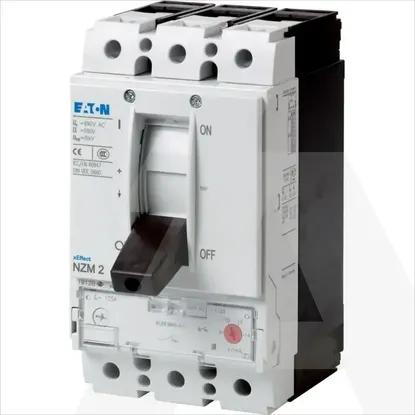

NZMS2-S200 | Circuit-breaker, 3p, Icu=70kA(415V), In=200A, no thermal, mag only, fixed,
