Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Overload release current setting200 - 250A
Adjustment range short-term delayed short-circuit release0 - 0A
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
With switched-off indicatorNo
Type of control elementRocker lever
With integrated under voltage releaseNo
Motor drive integratedNo
Complete device with protection unitYes
Position of connection for main current circuitFront side
Adjustment range undelayed short-circuit release1500 - 2500A
Motor drive optionalYes
Type of electrical connection of main circuitScrew connection
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
DIN rail (top hat rail) mounting optionalNo
Degree of protection (IP)IP20
Rated permanent current Iu250A
Number of poles3
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

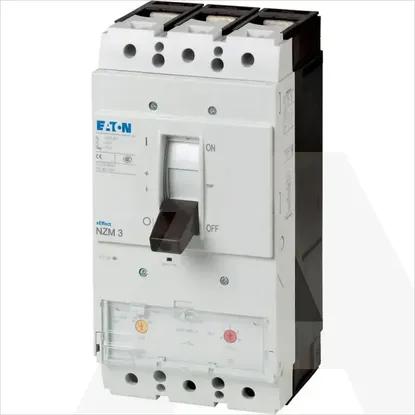

NZMS3-A250 | Circuit-breaker, 3p, Icu=70kA(415V), In=250A, circuit.prot, thermomag, fixed.mount,
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Overload release current setting
200 .. 250A
Adjustment range short-term delayed short-circuit release
0 .. 0A
Suitable for DIN rail (top hat rail) mounting
Number of auxiliary contacts as change-over contact
0
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
With switched-off indicator
Type of control element
Rocker lever
With integrated under voltage release
Motor drive integrated
Complete device with protection unit
Position of connection for main current circuit
Front side
Adjustment range undelayed short-circuit release
1500 .. 2500A
Motor drive optional
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device fixed built-in technique
Integrated earth fault protection
DIN rail (top hat rail) mounting optional
Degree of protection (IP)
IP20
Rated permanent current Iu
250A
Number of poles
3
Rated voltage
690 .. 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
70kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
