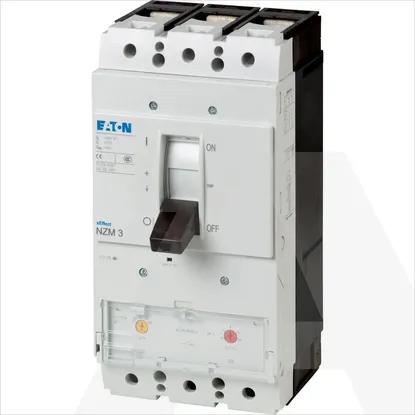

NZMS3-A500 | Circuit-breaker, 3p, Icu=70kA(415V), In=500A, circuit.prot, thermomag, fixed.mount,
Code: 2036926
ManufacturerEaton
Catalog number192026
TypePower circuit-breaker for trafo/generator/installation protection
EAN code4015081925773
Details
- •screw.terminal
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Overload release current setting400 - 500A
Adjustment range undelayed short-circuit release3000 - 5000A
Adjustment range short-term delayed short-circuit release0 - 0A
Device constructionBuilt-in device fixed built-in technique
Type of electrical connection of main circuitScrew connection
Integrated earth fault protectionNo
Number of auxiliary contacts as normally closed contact0
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
With integrated under voltage releaseNo
With switched-off indicatorNo
Type of control elementRocker lever
Position of connection for main current circuitFront side
Complete device with protection unitYes
Motor drive optionalYes
Degree of protection (IP)IP20
Motor drive integratedNo
Rated permanent current Iu500A
Number of poles3
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70kA
