Details
- •Earthing, lightning and surge protection
- •Lightning current arrester for power supply systems
- •1 KOM
- •EATON
Technical specifications
System configuration DCYes
System configuration ITNo
System configuration TNNo
System configuration TN-C-SNo
System configuration TN-CNo
Max. continuous voltage DC600V
Lightning impulse current (10/350 µs)5kA
Voltage protection level L-N2.5kV
Nominal voltage DC600V
Voltage protection level (DC+ - DC-)2.5kV
Nominal discharge surge current (8/20)20kA
Voltage protection level2.5kV
Specific energy (W/R)1.56kJ/Ohm
Voltage protection level (DC+/DC- - PE)2.5kV
Mounting methodDIN rail (top hat rail) 35 mm
With remote signalling contactYes
Max. conductor cross section solid (solid, stranded)35mm²
Category type 1Yes
Signalling at the deviceOptic
Integrated backup fuseNo
Max. conductor cross section flexible (fine-strand)25mm²
ExhaustingNo
System configuration TTNo
Number of conductors (without earthing)2
System configuration otherNo
System configuration TN-SNo
Construction size3 modular spacing
Degree of protection (IP)IP20
Suitable for outdoor useNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

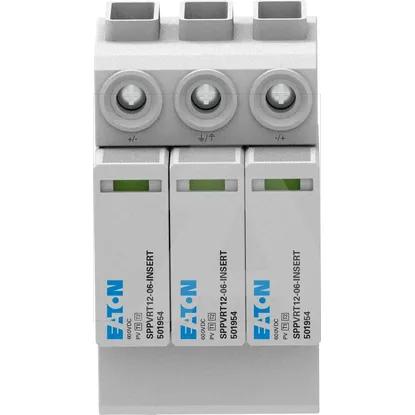

SPPVRT12-06-2+PE-AX | Surge arrester, class T1+T2 (i+ii, B+c), for PV applications 600V DC,
