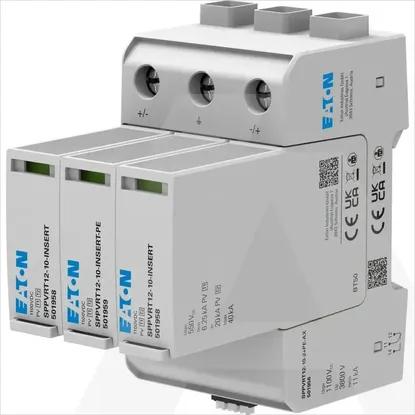

SPPVRT12-10-2+PE | Surge arrester, class T1+T2 (i+ii, B+c), for PV applications 1000V DC, Iscpv=11kA
Code: 2038009
ManufacturerEaton
Catalog numberEP-501955
TypeLightning current arrester for power supply systems
EAN code9010653062974
Details
- •Earthing, lightning and surge protection
- •Lightning current arrester for power supply systems
- •1 KOM
- •EATON
Technical specifications
System configuration DCYes
System configuration TN-CNo
System configuration TN-C-SNo
System configuration ITNo
System configuration TTNo
Nominal voltage DC1000V
System configuration TNNo
Signalling at the deviceOptic
ExhaustingNo
Nominal discharge surge current (8/20)20kA
Construction size3 modular spacing
System configuration TN-SNo
Max. conductor cross section solid (solid, stranded)35mm²
Max. conductor cross section flexible (fine-strand)25mm²
Voltage protection level (DC+/DC- - PE)3.8kV
System configuration otherNo
Max. continuous voltage DC1000V
Voltage protection level L-N3.8kV
Voltage protection level (DC+ - DC-)3.8kV
Specific energy (W/R)9.77kJ/Ohm
Degree of protection (IP)IP20
Suitable for outdoor useNo
With remote signalling contactNo
Category type 1Yes
Integrated backup fuseNo
Mounting methodDIN rail (top hat rail) 35 mm
Lightning impulse current (10/350 µs)6.25kA
Number of conductors (without earthing)2
Voltage protection level3.8kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
