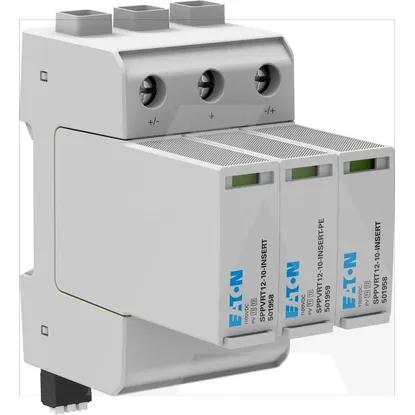

SPPVRT12-10-2+PE-AX | Surge arrester, class T1+T2 (i+ii, B+c), for PV applications 1000V DC,
Code: 2038010
ManufacturerEaton
Catalog numberEP-501956
TypeLightning current arrester for power supply systems
EAN code9010653062981
Details
- •Earthing, lightning and surge protection
- •Lightning current arrester for power supply systems
- •1 KOM
- •EATON
Technical specifications
System configuration DCYes
System configuration ITNo
System configuration TN-CNo
System configuration TNNo
System configuration TN-C-SNo
System configuration TN-SNo
System configuration TTNo
Nominal discharge surge current (8/20)20kA
Max. continuous voltage DC1000V
Nominal voltage DC1000V
System configuration otherNo
Voltage protection level L-N3.8kV
Specific energy (W/R)9.77kJ/Ohm
Voltage protection level (DC+ - DC-)3.8kV
Voltage protection level (DC+/DC- - PE)3.8kV
Max. conductor cross section solid (solid, stranded)35mm²
Construction size3 modular spacing
Max. conductor cross section flexible (fine-strand)25mm²
With remote signalling contactYes
Category type 1Yes
Signalling at the deviceOptic
ExhaustingNo
Suitable for outdoor useNo
Degree of protection (IP)IP20
Integrated backup fuseNo
Mounting methodDIN rail (top hat rail) 35 mm
Lightning impulse current (10/350 µs)6.25kA
Number of conductors (without earthing)2
Voltage protection level3.8kV
