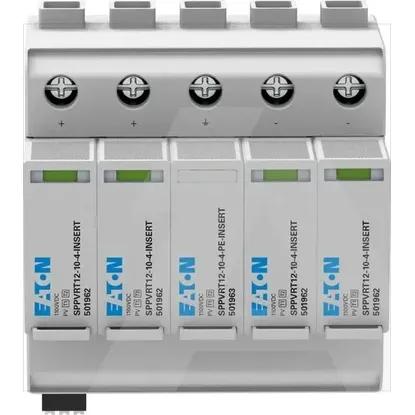

SPPVRT12-10-4+PE+AX | Surge arrester, class T1+T2 (i+ii, B+c), for PV app. 1000V DC, 2 Mppt,
Code: 2038011
ManufacturerEaton
Catalog numberEP-501957
TypeLightning current arrester for power supply systems
EAN code9010653062998
Details
- •Earthing, lightning and surge protection
- •Lightning current arrester for power supply systems
- •1 KOM
- •EATON
Technical specifications
System configuration DCYes
System configuration TNNo
System configuration otherNo
Nominal discharge surge current (8/20)20kA
Voltage protection level (DC+ - DC-)3.8kV
System configuration TN-C-SNo
Voltage protection level (DC+/DC- - PE)3.8kV
Voltage protection level L-N3.8kV
Nominal voltage DC1000V
With remote signalling contactYes
Integrated backup fuseNo
Construction size5 modular spacing
Signalling at the deviceOptic
Max. conductor cross section solid (solid, stranded)35mm²
Degree of protection (IP)IP20
Category type 1Yes
Suitable for outdoor useNo
ExhaustingNo
System configuration ITNo
System configuration TN-CNo
System configuration TN-SNo
Specific energy (W/R)6.25kJ/Ohm
Max. conductor cross section flexible (fine-strand)25mm²
Max. continuous voltage DC1000V
System configuration TTNo
Mounting methodDIN rail (top hat rail) 35 mm
Lightning impulse current (10/350 µs)10kA
Number of conductors (without earthing)4
Voltage protection level3.8kV
