Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •EATON
Technical specifications
System configuration DCYes
System configuration ITNo
System configuration TNNo
System configuration TN-CNo
System configuration TN-C-SNo
System configuration TN-SNo
System configuration TTNo
Number of conductors (without earthing)2
System configuration otherNo
Nominal discharge surge current (8/20)20kA
Max. discharge surge current (8/20)40kA
Nominal voltage DC1500V
Max. PV-voltage1500V
Max. continuous voltage DC1500V
Voltage protection level4.8kV
Voltage protection level L-N2.5kV
Short-circuit breaking capacity (Isccr)9kA
Integrated short-circuit protectionNo
Integrated backup fuseNo
Leakage-current freeNo
Construction size3 modular spacing
Max. conductor cross section solid (solid, stranded)35mm²
Mounting methodDIN rail (top hat rail) 35 mm
Max. conductor cross section flexible (fine-strand)25mm²
Signalling at the deviceOptic
With remote signalling contactNo
Category type 2Yes
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

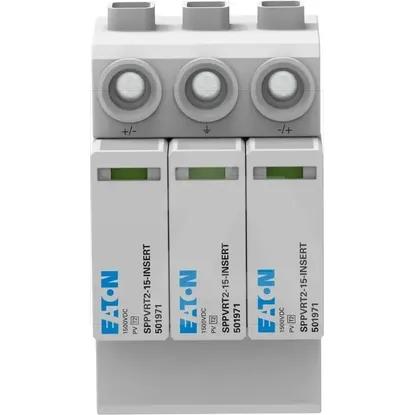

SPPVRT2-15-2+PE | Surge arrester, class T2 (ii, C), for PV applications 1500 V DC, Iscpv=9kA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Earthing, lightning and surge protection
- Surge protection device for power supply systems
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
System configuration DC
System configuration IT
System configuration TN
System configuration TN-C
System configuration TN-C-S
System configuration TN-S
System configuration TT
Number of conductors (without earthing)
2
System configuration other
Nominal discharge surge current (8/20)
20kA
Max. discharge surge current (8/20)
40kA
Nominal voltage DC
1500V
Max. PV-voltage
1500V
Max. continuous voltage DC
1500V
Voltage protection level
4.8kV
Voltage protection level L-N
2.5kV
Short-circuit breaking capacity (Isccr)
9kA
Integrated short-circuit protection
Integrated backup fuse
Leakage-current free
Construction size
3 modular spacing
Max. conductor cross section solid (solid, stranded)
35mm²
Mounting method
DIN rail (top hat rail) 35 mm
Max. conductor cross section flexible (fine-strand)
25mm²
Signalling at the device
Optic
With remote signalling contact
Category type 2
Degree of protection (IP)
IP20
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
