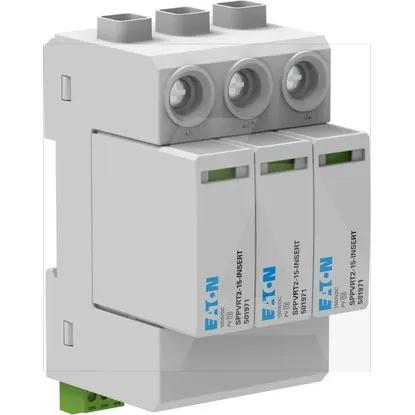

SPPVRT2-15-2+PE-AX | Surge arrester, class T2 (ii, C), for PV applications 1500 V DC, Iscpv=9kA,
Code: 2038024
ManufacturerEaton
Catalog numberEP-501970
TypeSurge protection device for power supply systems
EAN code9010653062912
Details
- •aux.contact
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
System configuration DCYes
System configuration TN-C-SNo
System configuration TTNo
Number of conductors (without earthing)2
Max. discharge surge current (8/20)40kA
Max. PV-voltage1500V
Nominal voltage DC1500V
Short-circuit breaking capacity (Isccr)9kA
System configuration ITNo
System configuration TNNo
System configuration TN-SNo
System configuration otherNo
System configuration TN-CNo
Category type 2Yes
Mounting methodDIN rail (top hat rail) 35 mm
Voltage protection level L-N2.5kV
Integrated backup fuseNo
Construction size3 modular spacing
Voltage protection level4.8kV
Leakage-current freeNo
Max. conductor cross section flexible (fine-strand)25mm²
Max. conductor cross section solid (solid, stranded)35mm²
Signalling at the deviceOptic
With remote signalling contactYes
Max. continuous voltage DC1500V
Integrated short-circuit protectionNo
Nominal discharge surge current (8/20)20kA
Degree of protection (IP)IP20
