Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •EATON
Technical specifications
System configuration DCYes
System configuration TTNo
System configuration TN-C-SNo
Max. continuous voltage DC600V
System configuration otherNo
Nominal discharge surge current (8/20)20kA
Number of conductors (without earthing)2
Short-circuit breaking capacity (Isccr)9kA
Max. PV-voltage600V
Nominal voltage DC600V
System configuration TN-SNo
Max. discharge surge current (8/20)40kA
Integrated backup fuseNo
Max. conductor cross section solid (solid, stranded)35mm²
System configuration TN-CNo
System configuration TNNo
System configuration ITNo
Voltage protection level L-N2.5kV
Construction size3 modular spacing
Leakage-current freeNo
Mounting methodDIN rail (top hat rail) 35 mm
Max. conductor cross section flexible (fine-strand)25mm²
Degree of protection (IP)IP20
Integrated short-circuit protectionNo
With remote signalling contactYes
Signalling at the deviceOptic
Voltage protection level2.5kV
Category type 2Yes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

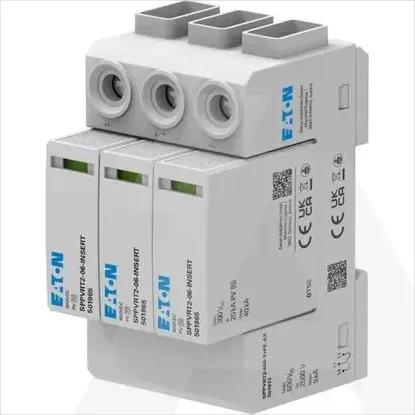

SPPVRT2-600-2+PE-AX | Surge arrester, class T2 (ii, C), for PV applications 600V DC, Iscpv=9kA,
