Details
- •Programmable logic controllers PLC
- •PLC CPU-module
- •1 KOM
- •EATON
Technical specifications
Supply voltage AC 50 Hz0 - 0V
Radio standard GPRSNo
Radio standard GSMNo
Supply voltage AC 60 Hz0 - 0V
Supply voltage DC19.2 - 30V
Number of relay outputs0
Voltage type of supply voltageDC
Processing time (1K, binary operation)0.00125ms
ModelModular
Max. number of time switches1000
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Number of HW-interfaces industrial Ethernet1
Number of interfaces PROFINET0
Number of HW-interfaces RS-4851
Number of HW-interfaces USB1
Number of HW-interfaces parallel0
Number of HW-interfaces Wireless0
Number of analogue inputs0
Number of HW-interfaces other2
Number of analogue outputs0
Number of digital outputs0
Number of digital inputs0
Supporting protocol for TCP/IPYes
With optical interfaceNo
Supporting protocol for PROFIBUSNo
Supporting protocol for CANYes
Supporting protocol for EtherCATNo
Supporting protocol for INTERBUSNo
Supporting protocol for ASINo
Supporting protocol for ModbusYes
Supporting protocol for KNXNo
Supporting protocol for Data-HighwayNo
Supporting protocol for SUCONETNo
Radio standard UMTSNo
Long-Term Evolution (LTE)No
IO link masterNo
Supporting protocol for LONNo
System accessoryYes
RedundancyNo
With displayNo
Type of memoryRAM
Memory size512000kByte
Additional program memory possibleYes
Rail mounting possibleYes
Wall mounting/direct mountingNo
Front built-in possibleNo
Rack-assembly possibleNo
Suitable for safety functionsNo
SIL according to IEC 61508None
Performance level according to EN ISO 13849-1None
Appendant operation agent (Ex ia)No
Appendant operation agent (Ex ib)No
Explosion safety category for gasNone
Explosion safety category for dustNone
Certified for UL hazardous location class INo
Certified for UL hazardous location class IINo
Certified for UL hazardous location division 1No
Certified for UL hazardous location class IIINo
Certified for UL hazardous location division 2No
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Supporting protocol for SERCOSNo
Supporting protocol for PROFIsafeNo
Supporting protocol for DeviceNetNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for IEC 61850 EthernetNo
Supporting protocol for DNP3No
Supporting protocol for SafetyBUS pNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for IEC 60870No
Supporting protocol for other bus systemsYes
Width80.3mm
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IONo
Height29.3mm
Depth104.2mm
Radio standard Wi-Fi 802.11No
Radio standard BluetoothNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

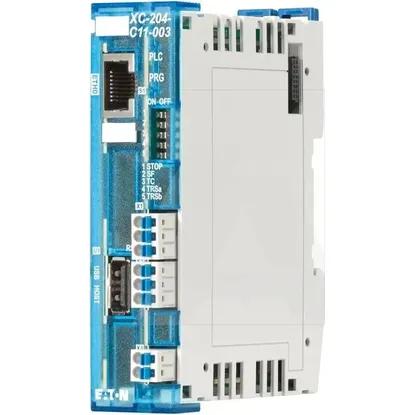

XC-204-C11-003 | Modular PLC XC204, CAN1, ETH1
