Details
- •Programmable logic controllers PLC
- •PLC CPU-module
- •1 KOM
- •EATON
Technical specifications
Supply voltage AC 50 Hz0 - 0V
Radio standard GPRSNo
Supply voltage DC19.2 - 30V
Supply voltage AC 60 Hz0 - 0V
Voltage type of supply voltageDC
Max. number of time switches1000
Number of relay outputs0
Processing time (1K, binary operation)0.00125ms
ModelModular
Number of HW-interfaces industrial Ethernet2
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-2320
Number of interfaces PROFINET0
Number of HW-interfaces RS-4851
Number of HW-interfaces USB1
Number of HW-interfaces Wireless0
Number of HW-interfaces parallel0
Number of digital inputs2
Supporting protocol for PROFIBUSNo
Number of HW-interfaces other1
Number of analogue outputs0
Supporting protocol for TCP/IPYes
With optical interfaceNo
Supporting protocol for EtherCATNo
Radio standard GSMNo
Radio standard UMTSNo
Long-Term Evolution (LTE)No
IO link masterNo
System accessoryYes
RedundancyYes
With displayNo
Type of memoryRAM
Memory size512000kByte
Additional program memory possibleYes
Rail mounting possibleYes
Front built-in possibleNo
Wall mounting/direct mountingNo
Rack-assembly possibleNo
Suitable for safety functionsNo
Performance level according to EN ISO 13849-1None
SIL according to IEC 61508None
Appendant operation agent (Ex ia)No
Appendant operation agent (Ex ib)No
Explosion safety category for gasNone
Explosion safety category for dustNone
Certified for UL hazardous location class INo
Certified for UL hazardous location class IINo
Supporting protocol for SERCOSNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for CANNo
Supporting protocol for other bus systemsYes
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for Data-HighwayNo
Supporting protocol for IEC 60870No
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for ASINo
Supporting protocol for KNXNo
Supporting protocol for SUCONETNo
Supporting protocol for PROFIsafeNo
Supporting protocol for DeviceNetNo
Supporting protocol for ModbusYes
Supporting protocol for IEC 61850 EthernetNo
Radio standard BluetoothNo
Supporting protocol for PROFINET IONo
Supporting protocol for PROFINET CBANo
Supporting protocol for EtherNet/IPYes
Supporting protocol for LONNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for INTERBUS-SafetyNo
Certified for UL hazardous location class IIINo
Certified for UL hazardous location division 1No
Certified for UL hazardous location division 2No
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group E (metal dusts)No
Supporting protocol for INTERBUSNo
Number of digital outputs2
Number of analogue inputs0
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group G (non-conductive dusts)No
Width80.3mm
Height29.3mm
Depth104.2mm
Radio standard Wi-Fi 802.11No
Supporting protocol for DNP3No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

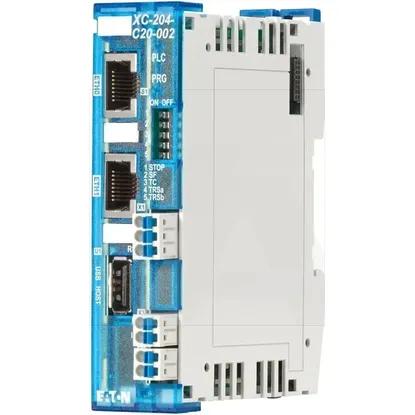

XC-204-C20-002 | Modular PLC XC204, ETH2, RS485, 2DIO
