Details
- •Programmable logic controllers PLC
- •Graphic panel
- •1 KOM
- •EATON
Technical specifications
Supply voltage AC 50 Hz0 - 0V
Number of pixels, horizontal600
Number of pixels, vertical1024
Useful project memory/user memory2000000kByte
Supply voltage AC 60 Hz0 - 0V
Supply voltage DC19.2 - 30V
Voltage type of supply voltageDC
Power consumption10.5W
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-2320
Number of interfaces PROFINET0
Number of HW-interfaces RS-4850
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB1
Number of HW-interfaces parallel0
Number of HW-interfaces other0
With SW interfacesNo
Supporting protocol for EtherCATNo
Number of HW-interfaces Wireless0
Supporting protocol for TCP/IPNo
Supporting protocol for PROFIBUSNo
Supporting protocol for CANNo
Supporting protocol for INTERBUSNo
Supporting protocol for KNXNo
Supporting protocol for ASINo
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetNo
Supporting protocol for SUCONETNo
Supporting protocol for ModbusNo
Supporting protocol for PROFINET IONo
Supporting protocol for LONNo
Supporting protocol for PROFINET CBANo
With numeric keyboardNo
With alpha numeric keyboardNo
Number of function buttons, programmable0
Number of buttons with LED0
Number of system buttons1
Touch technologyCapacitive multitouch
With message indicationNo
With message system (incl. buffer and confirmation)No
Process value representation (output) possibleNo
Process default value (input) possibleNo
With recipesNo
Number of password levels1
With printer outputNo
Number of online languages2
Additional software components, loadableNo
Degree of protection (IP), front sideIP65
Degree of protection (NEMA), front side4X
Certified for UL hazardous location class INo
Certified for UL hazardous location class IINo
Certified for UL hazardous location class IIINo
Certified for UL hazardous location division 1No
Certified for UL hazardous location division 2No
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group G (non-conductive dusts)No
Operating temperature0 - 0°C
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for PROFIsafeNo
Radio standard Wi-Fi 802.11No
Radio standard GPRSNo
Supporting protocol for other bus systemsNo
Radio standard BluetoothNo
Supporting protocol for SafetyBUS pNo
IO link masterNo
With colour displayYes
Type of displayTFT
Supporting protocol for Foundation FieldbusNo
Supporting protocol for SERCOSNo
Radio standard UMTSNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for AS-Interface Safety at WorkNo
Rail mounting possibleNo
Wall mounting/direct mountingNo
Suitable for safety functionsNo
Width of the front196mm
Height of the front35mm
Built-in depth43.1mm
Supporting protocol for DeviceNet SafetyNo
Screen diagonal7inch
Number of grey-scales/blue-scales of display0
Radio standard GSMNo
Number of colours of the display65536
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

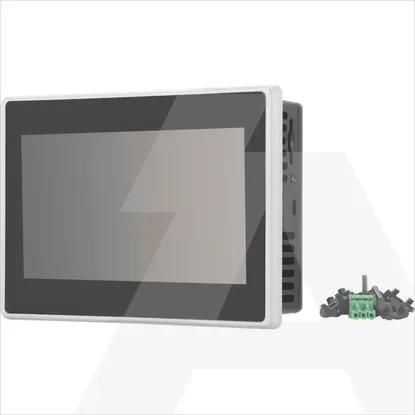

XH-303-70-A10-A00-2B | Web panel, 7 Tft, ARM Cortex-53, 1.8 GHz Quad-Core processor, 2GB Ram, Html 5
