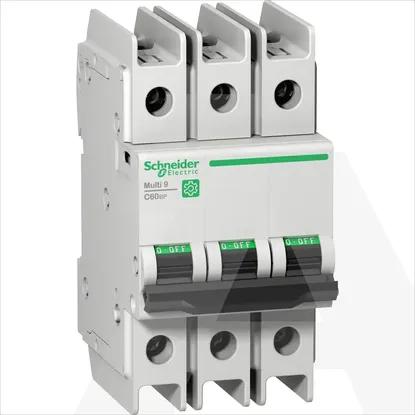

M9F43302 | Multi9 C60BP 3P D 2A 10kA 480Y/277V MCB
Code: 2042044
ManufacturerSchneider Electric
Catalog numberM9F43302
TypeM9F43302
CategoryMiniature circuit breaker (MCB)
EAN code3606481170538
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20kA
Current limiting class3
Voltage typeAC
Concurrently switching neutral conductorYes
Number of protected poles3
Rated voltage277V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Pollution degree3
Suitable for flush-mounted installationYes
Built-in depth48mm
Rated current2A
Frequency50 - 60Hz
Release characteristicD
Rated insulation voltage Ui500V
Over voltage category4
Width in number of modular spacings6
Explosion-proofNo
Power loss1.7W
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1 - 25mm²
Connectable conductor cross section multi-wired1 - 16mm²
Ambient temperature during operating-30 - 70°C
Flush-mounted installationNo
Additional equipment possibleYes
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated impulse withstand voltage Uimp6kV
