Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •SCHNEIDER

Technical specifications

Number of poles (total)2
Release characteristicD
Number of protected poles2
Rated current10A
Frequency- - -Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Concurrently switching neutral conductorNo
Current limiting class-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated voltage500V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20kA
Voltage typeDC
Width in number of modular spacings2
Suitable for flush-mounted installationNo
Built-in depth73mm
Pollution degree3
Over voltage category-
Degree of protection (IP)IP20
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

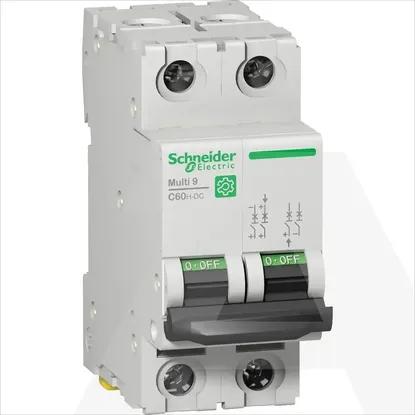

M9U31210 | Multi9 C60H-DC 2P 10A D 10kA 500V-DC MCB

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • SCHNEIDER

Technical specifications

Number of poles (total)

2

Release characteristic

D

Number of protected poles

2

Rated current

10A

Frequency

- .. -Hz

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10kA

Concurrently switching neutral conductor

Current limiting class

-

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

-kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

-kA

Rated voltage

500V

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

20kA

Voltage type

DC

Width in number of modular spacings

2

Suitable for flush-mounted installation

Built-in depth

73mm

Pollution degree

3

Over voltage category

-

Degree of protection (IP)

IP20

Additional equipment possible

VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
