Details

  • •Circuit breakers and fuses

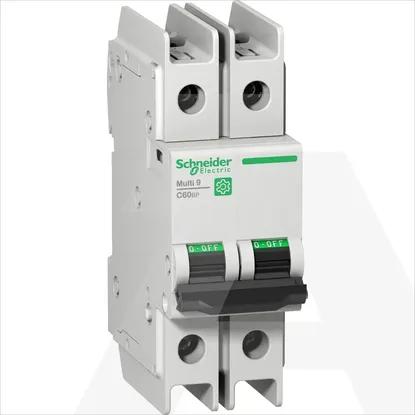

  • •Miniature circuit breaker (MCB)
  • •Minimum order quantity: 1 pcs
  • •SCHNEIDER

Technical specifications

Frequency- - -Hz
Voltage typeAC/DC
Built-in depth48mm
Rated current30A
Rated voltage277V
Release characteristicD
Rated insulation voltage Ui500V
Current limiting class3
Over voltage category4
Pollution degree3
Width in number of modular spacings4
Explosion-proofNo
Power loss2.5W
Degree of protection (IP)IP20
Number of protected poles2
Concurrently switching neutral conductorYes
Connectable conductor cross section solid-core1 - 35mm²
Connectable conductor cross section multi-wired1 - 25mm²
Ambient temperature during operating-30 - 70°C
Flush-mounted installationNo
Additional equipment possibleYes
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated impulse withstand voltage Uimp6kV
