Details
- •Terminal blocks
- •Ground terminal block
- •1 KOM
- •PHOENIX
Technical specifications
PEN function possibleNo
Connectable conductor cross section fine-strand with cable end sleeve1.5 - 6mm²
Connectable conductor cross section fine-strand without cable end sleeve1.5 - 10mm²
Number of clamp positions per level2
Width8.2mm
Height62.8mm
Inflammability class of insulation material according to with UL94V0
Operating temperature-60 - 110°C
Depth42.2mm
Closing plate requiredYes
Type of electrical connection 2Other
Connectable conductor cross section solid-core0.5 - 10mm²
Type of electrical connection 1Other
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyOther
ColourGreen/yellow
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

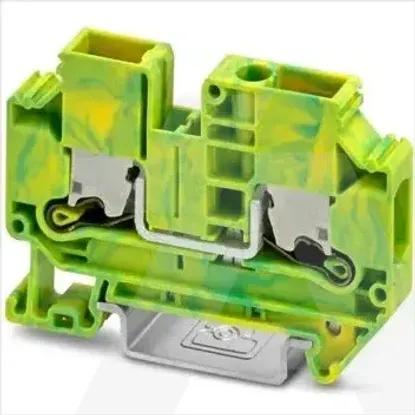

1329495 | XTV 6-PE
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- Ground terminal block
- 1 KOM
- PHOENIX
DetailsTechnical specifications
Technical specifications
PEN function possible
Connectable conductor cross section fine-strand with cable end sleeve
1.5 .. 6mm²
Connectable conductor cross section fine-strand without cable end sleeve
1.5 .. 10mm²
Number of clamp positions per level
2
Width
8.2mm
Height
62.8mm
Inflammability class of insulation material according to with UL94
V0
Operating temperature
-60 .. 110°C
Depth
42.2mm
Closing plate required
Type of electrical connection 2
Other
Connectable conductor cross section solid-core
0.5 .. 10mm²
Type of electrical connection 1
Other
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Colour
Green/yellow
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
