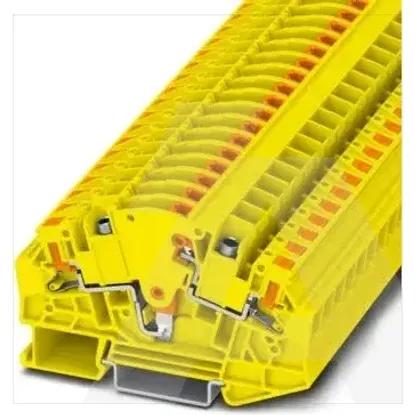

1350421 | PTVME 6/S-P YE
Code: 2047713
ManufacturerPhoenix Contact
Catalog number1350421
Type(Knife) disconnect terminal block
EAN code4063151670283
Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section fine-strand with cable end sleeve0.5 - 0.5mm²
Number of clamp positions per level2
Type of electrical connection 2Other
Depth54.5mm
ColourYellow
Closing plate requiredYes
Type of electrical connection 1Other
Width8.2mm
Height82mm
Connectable conductor cross section fine-strand without cable end sleeve0.5 - 6mm²
Inflammability class of insulation material according to with UL94V0
Material insulation bodyOther
Internally connected stagesYes
Mounting methodDIN rail (top hat rail) 35 mm
Rated voltage1000V
Connectable conductor cross section solid-core0.5 - 6mm²
Rated current In30A
