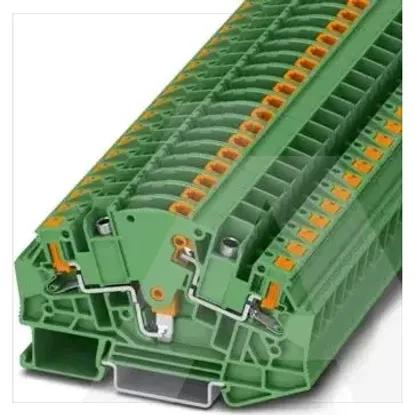

Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Type of electrical connection 1Other
Type of electrical connection 2Other
Height82mm
Inflammability class of insulation material according to with UL94V0
Width8.2mm
Depth54.5mm
Material insulation bodyOther
Connectable conductor cross section fine-strand with cable end sleeve0.5 - 0.5mm²
Number of clamp positions per level2
ColourGreen
Connectable conductor cross section fine-strand without cable end sleeve0.5 - 6mm²
Closing plate requiredYes
Internally connected stagesYes
Mounting methodDIN rail (top hat rail) 35 mm
Rated voltage1000V
Connectable conductor cross section solid-core0.5 - 6mm²
Rated current In30A
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1350422 | PTVME 6/S-P GN
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- (Knife) disconnect terminal block
- 50 KOM
- PHOENIX
DetailsTechnical specificationsRelated products
Technical specifications
Type of electrical connection 1
Other
Type of electrical connection 2
Other
Height
82mm
Inflammability class of insulation material according to with UL94
V0
Width
8.2mm
Depth
54.5mm
Material insulation body
Other
Connectable conductor cross section fine-strand with cable end sleeve
0.5 .. 0.5mm²
Number of clamp positions per level
2
Colour
Green
Connectable conductor cross section fine-strand without cable end sleeve
0.5 .. 6mm²
Closing plate required
Internally connected stages
Mounting method
DIN rail (top hat rail) 35 mm
Rated voltage
1000V
Connectable conductor cross section solid-core
0.5 .. 6mm²
Rated current In
30A
