Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.5 - 6mm²
Connectable conductor cross section solid-core0.5 - 6mm²
Type of electrical connection 1Other
Internally connected stagesYes
Number of clamp positions per level2
Type of electrical connection 2Other
Material insulation bodyOther
Rated voltage1000V
Width8.2mm
Connectable conductor cross section fine-strand with cable end sleeve0.5 - 0.5mm²
Height82mm
Depth54.5mm
Inflammability class of insulation material according to with UL94V0
Mounting methodDIN rail (top hat rail) 35 mm
Rated current In30A
Closing plate requiredYes
ColourYellow
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

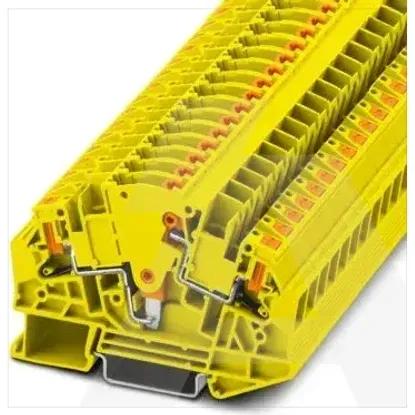

1350425 | PTVME 6/S YE
