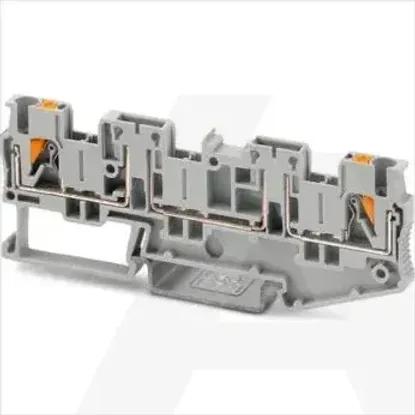

1446169 | PT 2,5-2TGB
Code: 2049003
ManufacturerPhoenix Contact
Catalog number1446169
Type(Knife) disconnect terminal block
EAN code4063151829896
Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 4mm²
Number of clamp positions per level2
Internally connected stagesYes
Type of electrical connection 2Other
Connectable conductor cross section fine-strand with cable end sleeve0.14 - 0.14mm²
Type of electrical connection 1Other
Inflammability class of insulation material according to with UL94V0
Material insulation bodyOther
Depth35.3mm
Type of cross disconnectionNone
ColourGrey
Height94.3mm
Width5.2mm
With integrated test socketNo
Closing plate requiredYes
Mounting methodDIN rail (top hat rail) 35 mm
Rated voltage400V
Connectable conductor cross section solid-core0.14 - 4mm²
