Details

  • •Terminal blocks
  • •(Knife) disconnect terminal block
  • •1 KOM
  • •PHOENIX

Technical specifications

Connectable conductor cross section fine-strand with cable end sleeve1.5 - 1.5mm²
Connectable conductor cross section fine-strand without cable end sleeve1.5 - 10mm²
Type of electrical connection 1Other
Type of electrical connection 2Other
Material insulation bodyOther
Number of clamp positions per level2
Internally connected stagesYes
ColourGrey
Inflammability class of insulation material according to with UL94V0
Height105.4mm
Closing plate requiredYes
Depth48.7mm
Width8.2mm
Mounting methodDIN rail (top hat rail) 35 mm
Rated voltage800V
Connectable conductor cross section solid-core0.5 - 10mm²
Rated current In41A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

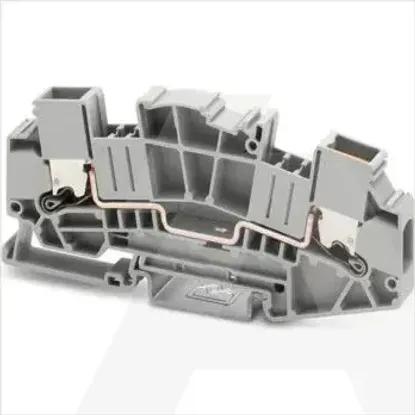

1446172 | XTVMED 6

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Terminal blocks
  • (Knife) disconnect terminal block
  • 1 KOM
  • PHOENIX

Technical specifications

Connectable conductor cross section fine-strand with cable end sleeve

1.5 .. 1.5mm²

Connectable conductor cross section fine-strand without cable end sleeve

1.5 .. 10mm²

Type of electrical connection 1

Other

Type of electrical connection 2

Other

Material insulation body

Other

Number of clamp positions per level

2

Internally connected stages

Colour

Grey

Inflammability class of insulation material according to with UL94

V0

Height

105.4mm

Closing plate required

Depth

48.7mm

Width

8.2mm

Mounting method

DIN rail (top hat rail) 35 mm

Rated voltage

800V

Connectable conductor cross section solid-core

0.5 .. 10mm²

Rated current In

41A
