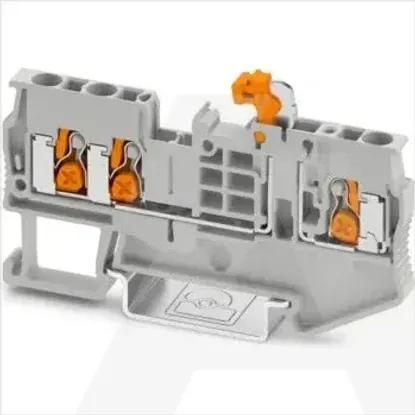

1462720 | XT 2,5-TWIN-MT
Code: 2049281
ManufacturerPhoenix Contact
Catalog number1462720
Type(Knife) disconnect terminal block
EAN code4063151853938
Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Type of electrical connection 2Other
Connectable conductor cross section fine-strand with cable end sleeve0.5 - 0.5mm²
Connectable conductor cross section fine-strand without cable end sleeve0.75 - 4mm²
Height73.7mm
Internally connected stagesYes
Number of clamp positions per level3
Inflammability class of insulation material according to with UL94V0
Type of electrical connection 1Other
Closing plate requiredYes
Depth36.9mm
ColourGrey
Width5.2mm
Type of cross disconnectionNone
Material insulation bodyOther
With integrated test socketNo
Mounting methodDIN rail (top hat rail) 35 mm
Rated voltage500V
Connectable conductor cross section solid-core0.5 - 4mm²
Rated current In20A
