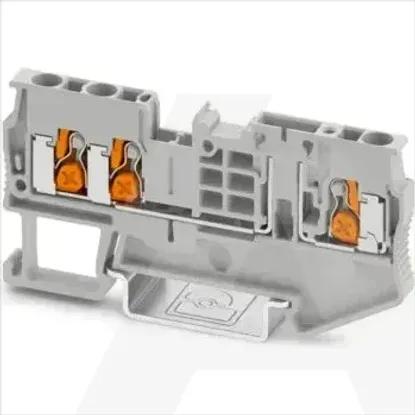

1462724 | XT 2,5-TWIN-TG
Code: 2049284
ManufacturerPhoenix Contact
Catalog number1462724
Type(Knife) disconnect terminal block
EAN code4063151852160
Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.75 - 4mm²
Type of electrical connection 2Other
Number of clamp positions per level3
Inflammability class of insulation material according to with UL94V0
Type of electrical connection 1Other
Height73.7mm
Internally connected stagesYes
Width5.2mm
Material insulation bodyOther
Connectable conductor cross section fine-strand with cable end sleeve0.5 - 0.5mm²
Closing plate requiredYes
ColourGrey
Type of cross disconnectionNone
Depth35.3mm
With integrated test socketNo
Mounting methodDIN rail (top hat rail) 35 mm
Rated voltage500V
Connectable conductor cross section solid-core0.5 - 4mm²
Rated current In20A
