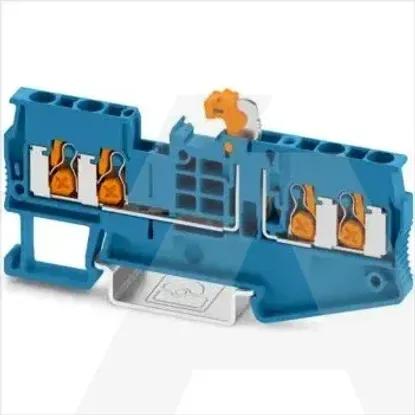

1462726 | XT 2,5-QUATTRO-MT BU
Code: 2049286
ManufacturerPhoenix Contact
Catalog number1462726
Type(Knife) disconnect terminal block
EAN code4063151852184
Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section fine-strand with cable end sleeve0.5 - 0.5mm²
Connectable conductor cross section fine-strand without cable end sleeve0.75 - 4mm²
Internally connected stagesYes
Number of clamp positions per level4
Type of electrical connection 1Other
Material insulation bodyOther
Type of electrical connection 2Other
Height84mm
Width5.2mm
Inflammability class of insulation material according to with UL94V0
Closing plate requiredYes
Type of cross disconnectionNone
ColourBlue
Depth36.9mm
With integrated test socketNo
Mounting methodDIN rail (top hat rail) 35 mm
Rated voltage500V
Connectable conductor cross section solid-core0.5 - 4mm²
Rated current In20A
