Details

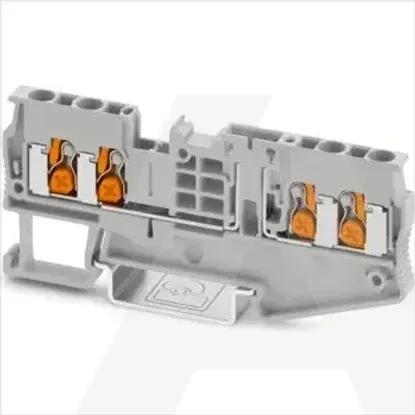

- •Terminal blocks
- •(Knife) disconnect terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section solid-core0.5 - 4mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5 - 0.5mm²
Connectable conductor cross section fine-strand without cable end sleeve0.75 - 4mm²
Rated voltage500V
Type of electrical connection 1Other
Number of clamp positions per level4
Rated current In20A
Type of electrical connection 2Other
Internally connected stagesYes
Material insulation bodyOther
Inflammability class of insulation material according to with UL94V0
Mounting methodDIN rail (top hat rail) 35 mm
Width5.2mm
Depth35.3mm
Type of cross disconnectionNone
ColourGrey
Closing plate requiredYes
Height84mm
With integrated test socketNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1462727 | XT 2,5-QUATTRO-TG
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- (Knife) disconnect terminal block
- 50 KOM
- PHOENIX
DetailsTechnical specifications
Technical specifications
Connectable conductor cross section solid-core
0.5 .. 4mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.5 .. 0.5mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.75 .. 4mm²
Rated voltage
500V
Type of electrical connection 1
Other
Number of clamp positions per level
4
Rated current In
20A
Type of electrical connection 2
Other
Internally connected stages
Material insulation body
Other
Inflammability class of insulation material according to with UL94
V0
Mounting method
DIN rail (top hat rail) 35 mm
Width
5.2mm
Depth
35.3mm
Type of cross disconnection
None
Colour
Grey
Closing plate required
Height
84mm
With integrated test socket
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
