Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section fine-strand with cable end sleeve0.14 - 0.14mm²
Connectable conductor cross section solid-core0.14 - 1.5mm²
Rated current In10A
Type of electrical connection 2Other
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 1.5mm²
Type of electrical connection 1Other
Number of clamp positions per level4
Rated voltage400V
Internally connected stagesYes
Inflammability class of insulation material according to with UL94V0
Mounting methodDIN rail (top hat rail) 35 mm
Height76.9mm
Material insulation bodyOther
Closing plate requiredYes
Width3.5mm
Type of cross disconnectionNone
Depth30.5mm
ColourBlack
With integrated test socketNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

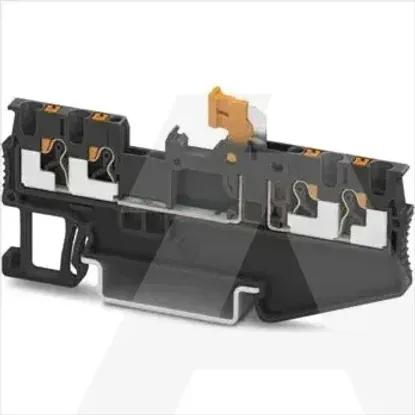

1548369 | PT 1,5/S-QUATTRO-MT BK
