Details

  • •Terminal blocks

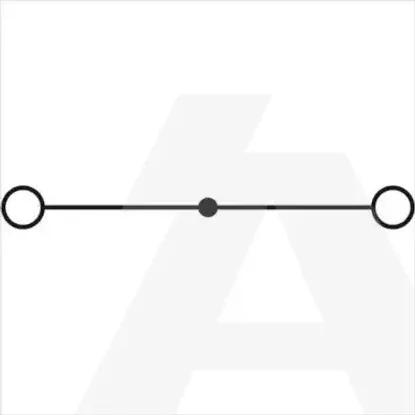

  • •Feed-through terminal block
  • •10 KOM
  • •PHOENIX

Technical specifications

Connectable conductor cross section fine-strand without cable end sleeve25 - 70mm²
Type of electrical connection 2Screw connection
Number of clamp positions per level2
Connectable conductor cross section fine-strand with cable end sleeve16 - 16mm²
Material insulation bodyOther
Type of electrical connection 1Screw connection
Width20.3mm
Depth78.3mm
Height70.5mm
Mounting methodDIN rail (top hat rail) 35 mm
Inflammability class of insulation material according to with UL94V0
Operating temperature-60 - 110°C
Suitable for conductor materialAluminium/copper
Closing plate requiredNo
Connectable conductor cross section multi-wired16 - 25mm²
Internally connected stagesYes
ColourWhite
Rated voltage1000V
Connectable conductor cross section solid-core16 - 95mm²
Rated current In192A
