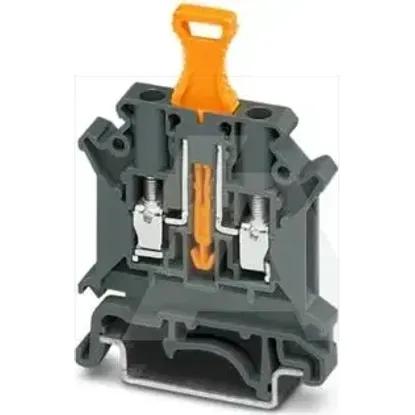

3246405 | TB 4-MT-P/P I
Code: 2055373
ManufacturerPhoenix Contact
Catalog number3246405
Type(Knife) disconnect terminal block
EAN code4046356608596
Details
- •Terminal blocks
- •(Knife) disconnect terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.5 - 4mm²
Internally connected stagesYes
Number of clamp positions per level2
Type of electrical connection 2Screw connection
Material insulation bodyOther
Type of electrical connection 1Screw connection
Connectable conductor cross section multi-wired0.5 - 1.5mm²
With integrated test socketNo
Type of cross disconnectionNone
Inflammability class of insulation material according to with UL94V0
Width6.15mm
Height42.5mm
Depth59.8mm
Connectable conductor cross section fine-strand with cable end sleeve0.5 - 0.5mm²
Mounting methodDIN rail (top hat rail) 35 mm
Rated voltage800V
Connectable conductor cross section solid-core0.5 - 6mm²
Rated current In16A
