Details
- •Terminal blocks

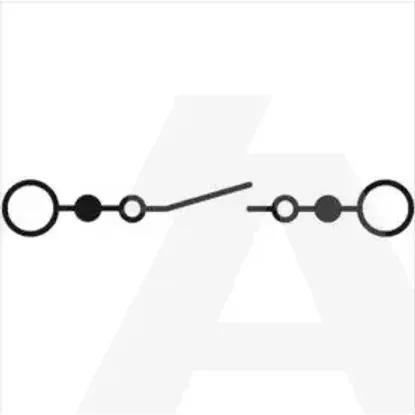

- •(Knife) disconnect terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section multi-wired1.5 - 2.5mm²
Connectable conductor cross section fine-strand with cable end sleeve1.5 - 1.5mm²
Rated voltage800V
Type of electrical connection 1Screw connection
Connectable conductor cross section fine-strand without cable end sleeve1.5 - 6mm²
Rated current In41A
Mounting methodDIN rail (top hat rail) 35 mm
Internally connected stagesYes
Width8.2mm
Inflammability class of insulation material according to with UL94V0
Height66.5mm
Closing plate requiredYes
Connectable conductor cross section solid-core1.5 - 6mm²
Type of cross disconnectionNone
Depth48mm
Material insulation bodyOther
Type of electrical connection 2Screw connection
Number of clamp positions per level2
With integrated test socketNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
3246463 | TB 6-T I
