Details
- •Connection devices
- •Box/housing for surface mounting on the wall/ceiling
- •1 KOM
- •OBO
Technical specifications
Mounting in the soilNo
Mounting under waterNo
Diameter-mm
Cover modelBlind cover
CastableNo
With casting compoundNo
Explosion-tested versionNo
Transparent coverNo
SealableNo
Length85mm
Number of inlets12
Inlet from the rearNo
TackableYes
Halogen freeYes
Type of housing feed-throughPreembossing
For Ex-zone gasNone
Cover attachmentSnapped on
Circuit integrityNone
WeatherproofNo
Rated insulation voltage Ui690V
With screeningNo
For Ex-Zone dustNone
Operating temperature-5 - 45°C
Mounting methodWall-/ceiling mounting
ColourWhite
Width85mm
ModelJunction box
Depth40mm
ShapeSquare
Equipped withNone
MaterialPlastic
Max. conductor cross section2.5mm²
Degree of protection (IP)IP55
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

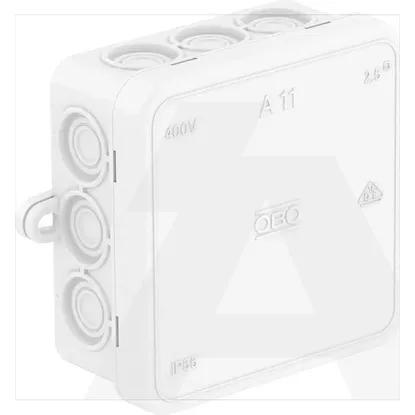

2000180 | A 11 HF RW
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Connection devices
- Box/housing for surface mounting on the wall/ceiling
- 1 KOM
- OBO
DetailsTechnical specifications
Technical specifications
Mounting in the soil
Mounting under water
Diameter
-mm
Cover model
Blind cover
Castable
With casting compound
Explosion-tested version
Transparent cover
Sealable
Length
85mm
Number of inlets
12
Inlet from the rear
Tackable
Halogen free
Type of housing feed-through
Preembossing
For Ex-zone gas
None
Cover attachment
Snapped on
Circuit integrity
None
Weatherproof
Rated insulation voltage Ui
690V
With screening
For Ex-Zone dust
None
Operating temperature
-5 .. 45°C
Mounting method
Wall-/ceiling mounting
Colour
White
Width
85mm
Model
Junction box
Depth
40mm
Shape
Square
Equipped with
None
Material
Plastic
Max. conductor cross section
2.5mm²
Degree of protection (IP)
IP55
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
