Details
- •Connection devices
- •Box/housing for built-in mounting in the wall/ceiling
- •1 KOM
- •OBO
Technical specifications
ConnectableNo
Diameter-mm
Provided with revolving ringNo
Internal depth-mm
Suitable for wall/board thicknessmm
For number of electric fittings-
Number of non-adjustable device fixing lugs-
Number of adjustable device fixing lugs-
Suitable for cable diameter- - -mm
Pipe lockingNo
Pipe locking optionalNo
Number of included spouts-
Transparent coverNo
SealableNo
Max. conductor cross section-mm²
Luminaire hook mountingNo
Clamp position fixedNo
Air tightNo
Number of poles of the clamp-
With partition panelNo
Compliant with BS 4662No
Mounting methodFlush mounted (plaster)
Width100mm
Construction typeCable junction box
ModelSingle
Degree of protection (IP)IP20
Depth45 - 45mm
Housing feed-through by nozzleNo
Housing feed-through by step membraneNo
ColourBlack
Housing feed-through by seal membraneNo
ShapeSquare
Halogen freeNo
Cover attachmentScrewed
NozzleNone
MaterialPlastic
With screwsNo
Number of inlets32
With screeningNo
Circuit integrityNone
Equipped withNone
Length100mm
Housing feed-through by break-out openingYes
Inlet from the rearNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

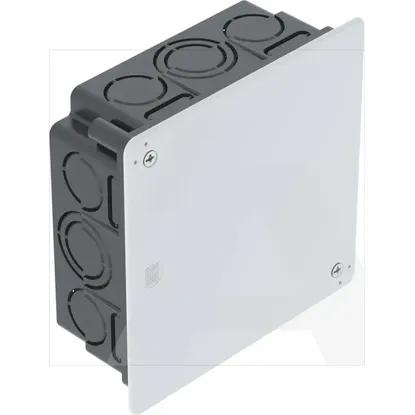

2003118 | UV 100 K
