Details
- •Connection devices
- •Box/housing for built-in mounting in the wall/ceiling
- •1 KOM
- •OBO
Technical specifications
Mounting methodHollow wall
ModelSingle
ShapeSquare
Construction typeCable junction box
Provided with revolving ringNo
ConnectableNo
Equipped withNone
Diameter-mm
Width105mm
Depth50 - 50mm
Length105mm
Suitable for wall/board thicknessmm
Internal depth-mm
For number of electric fittings-
With screwsYes
Number of non-adjustable device fixing lugs-
Housing feed-through by break-out openingYes
Number of adjustable device fixing lugs-
Housing feed-through by seal membraneNo
Housing feed-through by nozzleNo
For tube diameter20 mm
Housing feed-through by step membraneNo
Suitable for cable diameter- - -mm
Pipe lockingNo
Inlet from the rearYes
Number of inlets20
MaterialPlastic
Number of included spouts-
ColourOrange
Degree of protection (IP)IP30
Halogen freeYes
Transparent coverNo
Pipe locking optionalNo
Cover attachmentScrewed
SealableNo
Circuit integrityNone
Air tightNo
With screeningNo
Max. conductor cross section4mm²
Clamp position fixedNo
Number of poles of the clamp-
NozzleNone
Luminaire hook mountingNo
Compliant with BS 4662No
With partition panelNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

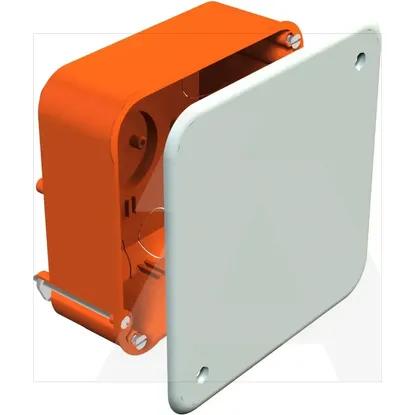

2003449 | HV 100 KD
