Details
- •Connection devices
- •Box/housing for built-in mounting in the wall/ceiling
- •1 KOM
- •OBO
Technical specifications
ModelSingle
Provided with revolving ringNo
Mounting switching equipmentScrew or spread out
With screwsYes
ConnectableNo
Suitable for wall/board thicknessmm
Construction typeDevice connection box (round/square)
Depth66 - 66mm
For number of electric fittings-
Internal depth-mm
Number of adjustable device fixing lugs-
Housing feed-through by seal membraneNo
Housing feed-through by step membraneNo
Number of non-adjustable device fixing lugs-
Housing feed-through by break-out openingYes
Housing feed-through by nozzleNo
For tube diameter20/25 mm
Suitable for cable diameter- - -mm
Inlet from the rearYes
Pipe locking optionalNo
Pipe lockingNo
Number of included spouts-
MaterialPlastic
ColourBlack
Number of inlets13
Halogen freeYes
Transparent coverNo
Air tightNo
Max. conductor cross section-mm²
Cover attachmentScrewed
Number of poles of the clamp-
SealableNo
With screeningNo
Luminaire hook mountingNo
Clamp position fixedNo
With partition panelNo
Compliant with BS 4662No
Width-mm
ShapeRound
Diameter60mm
Length-mm
Degree of protection (IP)IP30
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

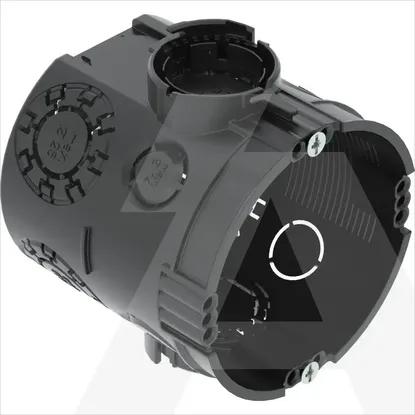

2003703 | UG 66-GS
