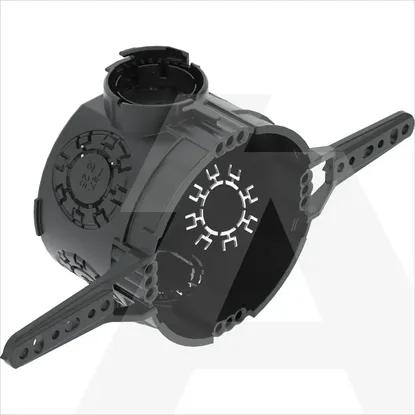

Details
- •Connection devices
- •Box/housing for built-in mounting in the wall/ceiling
- •1 KOM
- •OBO
Technical specifications
ShapeRound
ConnectableNo
Provided with revolving ringNo
Diameter60mm
Suitable for wall/board thicknessmm
Width-mm
Internal depth-mm
Construction typeBuilt-in installation box (device box)
Depth46 - 46mm
Length-mm
ModelSingle
With screwsNo
For number of electric fittings-
Mounting switching equipmentScrew or spread out
Number of non-adjustable device fixing lugs-
Number of adjustable device fixing lugs-
Housing feed-through by nozzleNo
Housing feed-through by break-out openingYes
For tube diameter20/25 mm
Suitable for cable diameter- - -mm
Housing feed-through by seal membraneNo
Housing feed-through by step membraneNo
Pipe locking optionalNo
Inlet from the rearYes
Number of inlets7
Pipe lockingNo
MaterialPlastic
Halogen freeYes
ColourBlack
Number of included spouts-
Degree of protection (IP)IP30
Transparent coverNo
Cover attachmentScrewed
SealableNo
With screeningNo
Clamp position fixedNo
Air tightNo
Max. conductor cross section-mm²
Luminaire hook mountingNo
Number of poles of the clamp-
With partition panelNo
Compliant with BS 4662No
