Details
- •Connection devices
- •Box/housing for built-in mounting in the wall/ceiling
- •1 KOM
- •OBO
Technical specifications
ShapeOval
ModelDouble
Construction typeDevice connection box (round/square)
ConnectableNo
Provided with revolving ringNo
Diameter-mm
Width60mm
Length148mm
Internal depth-mm
Depth66 - 66mm
Suitable for wall/board thicknessmm
Mounting switching equipmentScrew or spread out
With screwsNo
For number of electric fittings-
Number of adjustable device fixing lugs-
Housing feed-through by break-out openingYes
Number of non-adjustable device fixing lugs-
Housing feed-through by nozzleNo
Housing feed-through by seal membraneNo
For tube diameter20/25 mm
Suitable for cable diameter- - -mm
Housing feed-through by step membraneNo
Pipe lockingNo
Pipe locking optionalNo
Inlet from the rearYes
MaterialPlastic
Halogen freeYes
Number of inlets22
Number of included spouts-
ColourBlack
Degree of protection (IP)IP30
Transparent coverNo
SealableNo
Cover attachmentScrewed
With screeningNo
Air tightNo
Clamp position fixedNo
Max. conductor cross section-mm²
Luminaire hook mountingNo
Number of poles of the clamp-
Compliant with BS 4662No
With partition panelNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

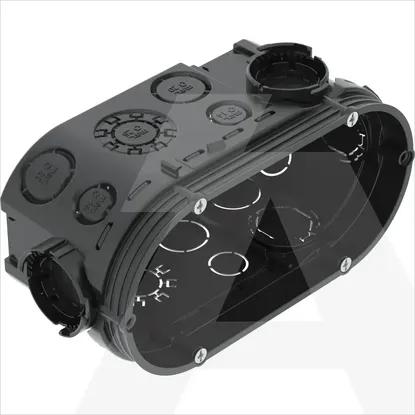

2003720 | UG 66-DV
