Details
- •Connection devices

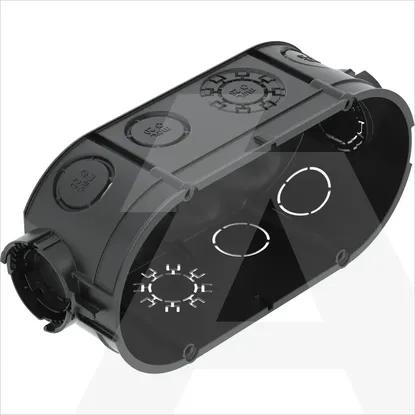

- •Box/housing for built-in mounting in the wall/ceiling
- •1 KOM
- •OBO
Technical specifications
ShapeOval
ConnectableNo
Length148mm
With screwsNo
ModelDouble
Construction typeBuilt-in installation box (device box)
Diameter-mm
Width68mm
Depth46 - 46mm
Provided with revolving ringNo
Internal depth-mm
For number of electric fittings-
Suitable for wall/board thicknessmm
Mounting switching equipmentScrew or spread out
Number of adjustable device fixing lugs-
Housing feed-through by nozzleNo
Number of non-adjustable device fixing lugs-
Housing feed-through by break-out openingYes
Housing feed-through by step membraneNo
Pipe lockingNo
Suitable for cable diameter- - -mm
Housing feed-through by seal membraneNo
Pipe locking optionalNo
Number of inlets12
For tube diameter20/25 mm
MaterialPlastic
Number of included spouts-
Degree of protection (IP)IP30
ColourBlack
Halogen freeYes
Transparent coverNo
Inlet from the rearYes
Cover attachmentScrewed
SealableNo
With screeningNo
Air tightNo
Number of poles of the clamp-
Clamp position fixedNo
Max. conductor cross section-mm²
Luminaire hook mountingNo
With partition panelNo
Compliant with BS 4662No
