Details
- •Connection devices
- •Box/housing for built-in mounting in the wall/ceiling
- •1 KOM
- •OBO
Technical specifications
Internal depth-mm
ConnectableNo
Provided with revolving ringNo
Suitable for wall/board thicknessmm
For number of electric fittings-
Number of non-adjustable device fixing lugs-
Suitable for cable diameter- - -mm
Pipe lockingNo
Transparent coverNo
Number of included spouts-
Pipe locking optionalNo
Number of adjustable device fixing lugs-
With screeningNo
Air tightNo
Max. conductor cross section-mm²
Number of poles of the clamp-
SealableNo
Luminaire hook mountingNo
Clamp position fixedNo
Compliant with BS 4662No
With partition panelNo
ShapeOval
ModelSingle
Housing feed-through by nozzleNo
Construction typeDevice connection box (round/square)
Mounting switching equipmentScrewing
Housing feed-through by break-out openingNo
Diameter61mm
For tube diameter20/25 mm
Housing feed-through by seal membraneYes
Length148mm
Housing feed-through by step membraneNo
Width76mm
Depth67 - 67mm
With screwsYes
ColourBlack
Number of inlets24
Halogen freeYes
MaterialPlastic
Inlet from the rearYes
Degree of protection (IP)IP30
Cover attachmentScrewed
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

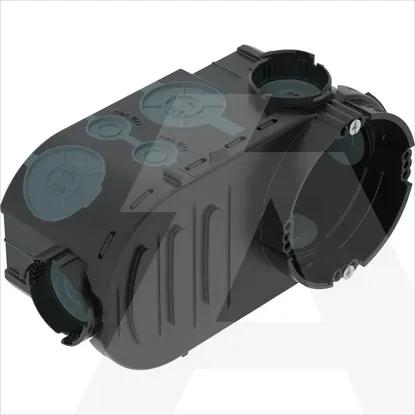

2003727 | UE 66-L
