Details
- •Connection devices
- •Box/housing for built-in mounting in the wall/ceiling
- •1 KOM
- •OBO
Technical specifications
ModelSingle
Provided with revolving ringNo
ConnectableNo
Depth47 - 47mm
Length-mm
Construction typeBuilt-in installation box (device box)
Mounting methodHollow wall
Internal depth-mm
Suitable for wall/board thicknessmm
For number of electric fittings1
Diameter68mm
ShapeRound
With screwsYes
Width-mm
Mounting switching equipmentScrewing
Housing feed-through by seal membraneNo
Housing feed-through by break-out openingYes
Number of non-adjustable device fixing lugs-
For tube diameter20/25 mm
Suitable for cable diameter- - -mm
Pipe lockingNo
Number of adjustable device fixing lugs-
Housing feed-through by step membraneNo
Inlet from the rearNo
MaterialPlastic
Number of included spouts-
Transparent coverNo
Number of inlets6
ColourOrange
Pipe locking optionalNo
Halogen freeYes
Degree of protection (IP)IP30
Housing feed-through by nozzleNo
With screeningNo
Air tightNo
Max. conductor cross section-mm²
Cover attachmentScrewed
SealableNo
Clamp position fixedNo
With partition panelNo
Luminaire hook mountingNo
Number of poles of the clamp-
Compliant with BS 4662No
NozzleOther
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

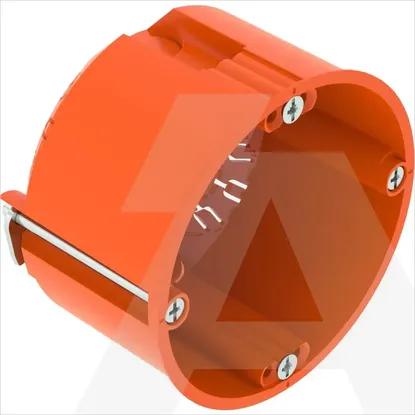

2003802 | HG 47
