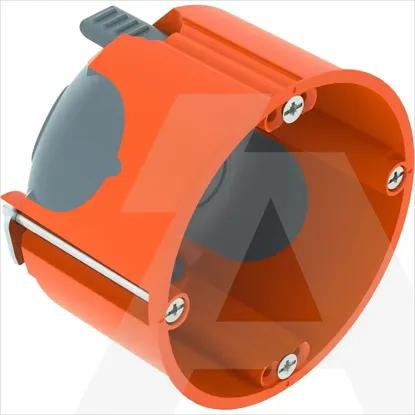

Details
- •Connection devices
- •Box/housing for built-in mounting in the wall/ceiling
- •1 KOM
- •OBO
Technical specifications
Mounting methodHollow wall
ShapeRound
Provided with revolving ringNo
ModelSingle
Length-mm
Width-mm
Diameter68mm
Depth47 - 47mm
Suitable for wall/board thicknessmm
Construction typeBuilt-in installation box (device box)
For number of electric fittings1
Mounting switching equipmentScrewing
Internal depth-mm
With screwsYes
ConnectableNo
Number of non-adjustable device fixing lugs-
Number of adjustable device fixing lugs-
Housing feed-through by break-out openingNo
Housing feed-through by seal membraneYes
Housing feed-through by nozzleNo
For tube diameter20/25 mm
Suitable for cable diameter- - -mm
Pipe lockingNo
Housing feed-through by step membraneNo
Pipe locking optionalNo
Inlet from the rearNo
Number of included spouts-
Number of inlets6
Halogen freeYes
MaterialPlastic
Degree of protection (IP)IP30
ColourOrange
Transparent coverNo
Cover attachmentScrewed
SealableNo
Air tightNo
Max. conductor cross section-mm²
Clamp position fixedNo
Luminaire hook mountingNo
NozzleOther
Number of poles of the clamp-
Compliant with BS 4662No
With partition panelNo
With screeningNo
