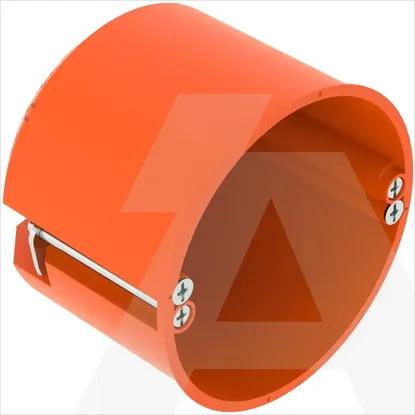

Details
- •Connection devices
- •Box/housing for built-in mounting in the wall/ceiling
- •1 KOM
- •OBO
Technical specifications
ModelSingle
ShapeRound
Provided with revolving ringNo
Construction typeDevice connection box (round/square)
Internal depth-mm
Length-mm
Depth61 - 61mm
ConnectableNo
Suitable for wall/board thicknessmm
Width-mm
Diameter74mm
For number of electric fittings1
With screwsYes
Mounting switching equipmentScrewing
Number of non-adjustable device fixing lugs-
Housing feed-through by break-out openingYes
Number of adjustable device fixing lugs-
Housing feed-through by nozzleNo
Housing feed-through by seal membraneNo
Housing feed-through by step membraneNo
MaterialPlastic
Degree of protection (IP)IP30
For tube diameter20/25 mm
Number of included spouts-
Pipe lockingNo
Pipe locking optionalNo
Number of inlets9
Suitable for cable diameter- - -mm
Transparent coverNo
Halogen freeYes
Inlet from the rearNo
ColourOrange
SealableNo
Cover attachmentScrewed
With screeningNo
Air tightNo
Clamp position fixedNo
Luminaire hook mountingNo
NozzleNone
Number of poles of the clamp-
Max. conductor cross section-mm²
Compliant with BS 4662No
With partition panelNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2003818 | HG 61-AD
