Details
- •Connection devices
- •Box/housing for built-in mounting in the wall/ceiling
- •1 KOM
- •OBO
Technical specifications
ModelSingle
Construction typeDevice connection box (round/square)
ShapeRound
Width-mm
Mounting switching equipmentScrewing
Length-mm
Diameter74mm
Internal depth-mm
With screwsYes
Suitable for wall/board thicknessmm
Provided with revolving ringNo
Depth61 - 61mm
For number of electric fittings1
ConnectableNo
Number of non-adjustable device fixing lugs-
Housing feed-through by seal membraneNo
Number of adjustable device fixing lugs-
For tube diameter20/25 mm
Suitable for cable diameter- - -mm
Pipe locking optionalNo
Inlet from the rearNo
MaterialPlastic
Number of inlets9
Housing feed-through by step membraneNo
Pipe lockingNo
Halogen freeYes
Degree of protection (IP)IP34
Transparent coverNo
Number of included spouts-
ColourOrange
Housing feed-through by break-out openingYes
Housing feed-through by nozzleNo
SealableNo
With screeningNo
Air tightNo
Number of poles of the clamp-
Clamp position fixedNo
NozzleNone
Cover attachmentScrewed
With partition panelNo
Compliant with BS 4662No
Luminaire hook mountingNo
Max. conductor cross section-mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

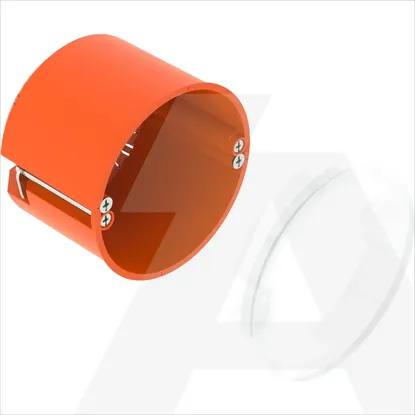

2003819 | HG 61-AD-IP
