Details
- •Connection devices
- •Box/housing for built-in mounting in the wall/ceiling
- •1 KOM
- •OBO
Technical specifications
ConnectableNo
Internal depth-mm
Provided with revolving ringNo
Suitable for wall/board thicknessmm
Suitable for cable diameter- - -mm
Number of adjustable device fixing lugs-
Pipe lockingNo
Number of non-adjustable device fixing lugs-
Inlet from the rearNo
Pipe locking optionalNo
Transparent coverNo
Number of included spouts-
Air tightNo
Number of poles of the clamp-
With screeningNo
Luminaire hook mountingNo
Clamp position fixedNo
With partition panelNo
SealableNo
Max. conductor cross section-mm²
Compliant with BS 4662No
Construction typeCable junction box
For number of electric fittings1
Housing feed-through by break-out openingYes
Housing feed-through by seal membraneNo
For tube diameter20/25 mm
Number of inlets9
Housing feed-through by nozzleNo
Housing feed-through by step membraneNo
With screwsYes
Mounting switching equipmentScrewing
Depth61 - 61mm
ModelSingle
MaterialPlastic
Halogen freeYes
ColourOrange
Cover attachmentScrewed
NozzleNone
Width-mm
ShapeRound
Diameter74mm
Length-mm
Degree of protection (IP)IP30
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

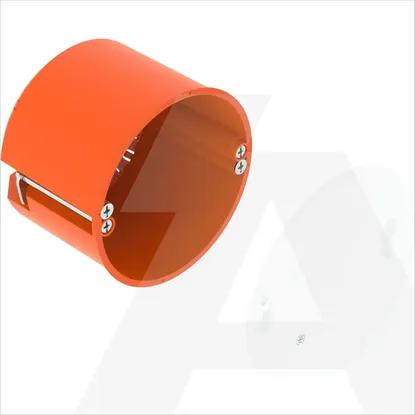

2003820 | HG 61-AD-D
