Details
- •Connection devices
- •Box/housing for built-in mounting in the wall/ceiling
- •1 KOM
- •OBO
Technical specifications
ModelDouble
ConnectableNo
Construction typeDevice connection box (round/square)
Depth61 - 61mm
Internal depth-mm
Provided with revolving ringNo
For number of electric fittings2
Mounting switching equipmentScrewing
Suitable for wall/board thicknessmm
With screwsYes
Number of non-adjustable device fixing lugs-
Number of adjustable device fixing lugs-
Housing feed-through by step membraneNo
For tube diameter20/25 mm
Housing feed-through by seal membraneYes
Housing feed-through by nozzleNo
Inlet from the rearNo
Number of inlets14
Suitable for cable diameter- - -mm
Transparent coverNo
Pipe locking optionalNo
Pipe lockingNo
Number of included spouts-
Halogen freeYes
MaterialPlastic
ColourOrange
Housing feed-through by break-out openingNo
Air tightNo
Cover attachmentSnapped on
Max. conductor cross section-mm²
With screeningNo
Number of poles of the clamp-
Clamp position fixedNo
Luminaire hook mountingNo
With partition panelNo
Compliant with BS 4662No
NozzleOther
SealableNo
Mounting methodHollow wall
Width71mm
ShapeOval
Diameter-mm
Length142mm
Degree of protection (IP)IP30
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

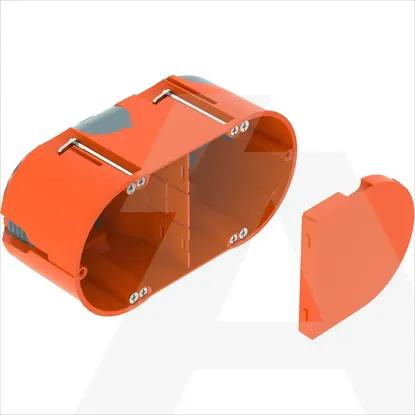

2003826 | HE 61-DV-L
